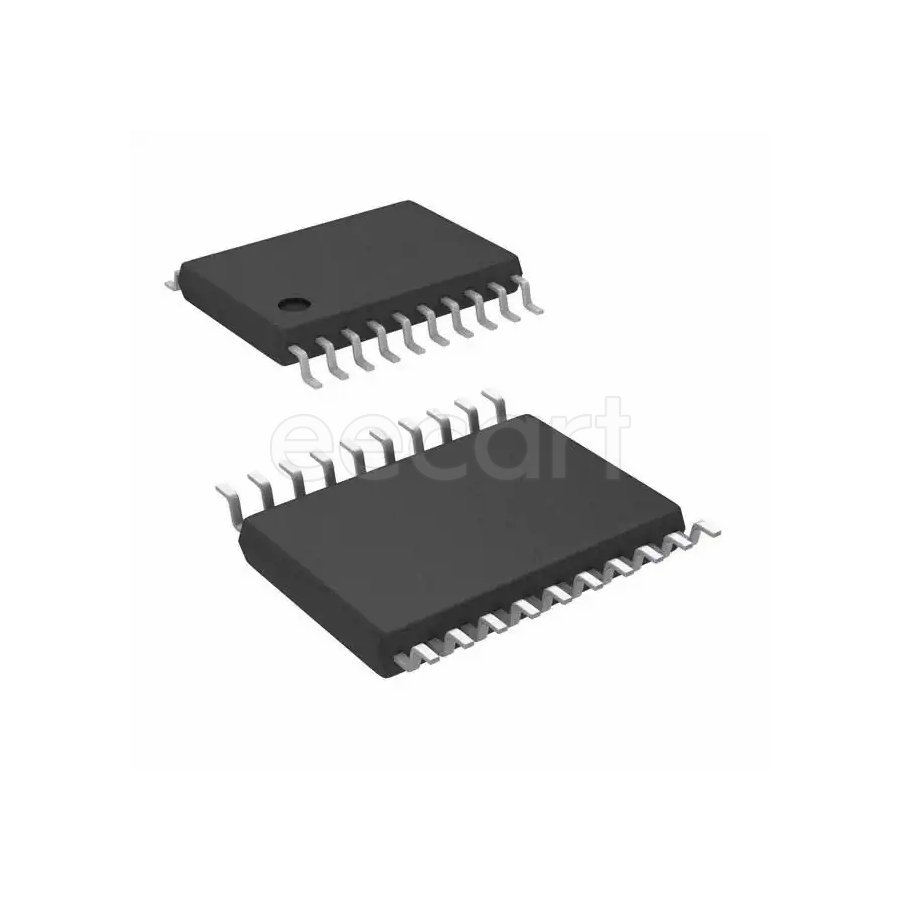

AD7998BRUZ-1
Manufacturer:
Analog Devices
Mfr.Part #:
AD7998BRUZ-1
Datasheet:
Description:
Analog to Digital Converters (ADCs) TSSOP-20 SMD/SMT number of channels:8 Number of Inputs:8 1.5 B 79 ksps Core Architecture:SAR
| Parameter | Value |
|---|---|
| Length | 6.6 mm |
| Width | 4.5 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 20 |
| Height | 1.05 mm |
| Packaging | Bulk |
| Lead Free | Contains Lead |
| Radiation Hardening | No |
| RoHS | Compliant |
| Polarity | Unipolar |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Number of Elements | 1 |
| Interface | 2-Wire, I²C |
| Min Input Voltage | 1.2 V |
| Lifecycle Status | Production (Last Updated: 2 months ago) |
| Max Power Dissipation | 6.05 mW |
| Max Supply Voltage | 5.5 V |
| Min Supply Voltage | 2.7 V |
| Power Dissipation | 6.05 mW |
| Number of Channels | 8 |
| Number of Bits | 12 |
| Input capacitance | 30 pF |
| Number of Inputs | 8 |
| Data Rate | 79 kbps |
| Supply Type | Single |
| Max Input Voltage | 5.5 V |
| Sampling Rate | 79 ksps |
| Integral Nonlinearity (INL) | 1 LSB |
| Number of Converters | 1 |
| Number of Analog Inputs | 8 |
| power consumption | 2.31 mW |
| Resolution | 1.5 B |
| Number of A/D Converters | 1 |
| Signal to Noise Ratio (SNR) | 71 dB |
| Differential Nonlinearity | -0.9 LSB |
| Schedule B | 8542390000 |
| Manufacturer Lifecycle Status | PRODUCTION (Last Updated: 2 months ago) |
| Configuration | MUX-S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Input Type | Single Ended |
| Interface Type(Data Interface) | I²C |
| Analog Supply Voltage | 2.7 V to 5.5 V |
| Max Digital Supply Voltage | 5.5 V |
| Min Digital Supply Voltage | 2.7 V |
| Core Architecture(core/core processor) | SAR |
| Reference Type | External |
Stock: 34
Distributors
pcbx
pcbxUnit Price$10.57722
Ext.Price$10.57722
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $10.57722 | $10.57722 |
| 10 | $10.05242 | $100.52420 |
| 25 | $9.35396 | $233.84900 |
| 50 | $8.70403 | $435.20150 |
| 100 | $8.09925 | $809.92500 |
